Metal Cable Glands

Corrosion resistant, with good electrical conductivity and electrical conductivity.
1.BOESE offers cable glands in various sizes,M12-M63,PG7-PG48
2.Use integral brass nickel-plated joints，strong and sturdy.Provides strength and antimagnetic properties as well as resistance to deformation at high and low temperatures.
3.Typically used in environments exposed to moisture, dust, or other contaminants
4.Designed to comply with international standards such as CE, ROHS and REACH
5.Use for different applications such as indoor, outdoor, threaded, weatherproof,straightening and industrial.

Product information
Product parameters

Product information

Thread spec: PG and Metric
Material:

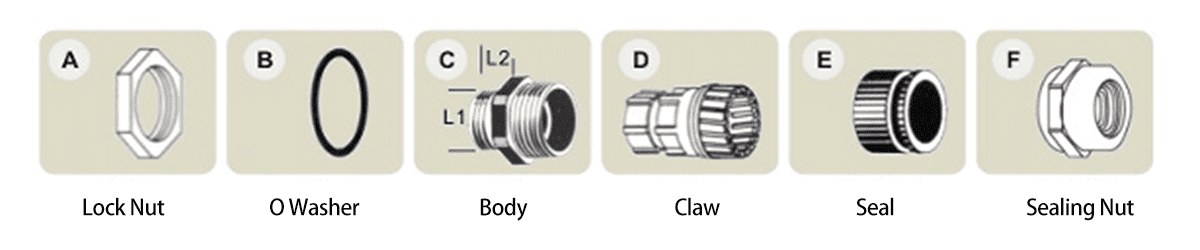

Parts A.C.F.are made of brass plated withnickel,Part D
part D is made nylon PA66,parts B and Eare made of nitrile butadiene rubber(NBR)
Working temperature: 40 – 100,instantaneous heatresistance up to 120C
Features:
The claws and seals of excellent design,sealing nut have a “click”sound and re-open,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.

Item No.	Thread size	Cable Range Ф(mm)		Thread O.D.	Thread Length	Spanner Size
Item No.	Thread size	Conventional	Thickening	L2(mm)	L1(mm)	A&F(mm)
PG7	12.5-12.8	3-6.5	2-5	12.5	8	14
PG9	15.2-15.5	4-8	2-6	15.2	8.2	17
PG11	18.6-18.9	5-10	3-7	18.6	8.2	20
PG13.5	20.4-20.7	6.7-12	5-9	20.4	9	22
PG16	22.5-22.8	10.2-14	7-12	22.5	10	24
PG21	28.3-28.6	13-18	9-16	28.3	10	30
PG29	37-37.3	18.5-25	13-20	37	12	40
PG36	47-47.3	23-32	20-26	47	14	50
PG42	54-54.3	32.7-38	25-31	54	14	57
PG48	59.3-59.6	37-44	29-35	59.3	16.6	64
M12x1.5	12-12.3	3-6.5	2-5	18	8	14
M16x1.5	16-16.3	4-8	2-6	20	8.2	17
M20x1.5	20-20.3	6.7-12	5-9	22	9	22
M25x1.5	25-25.3	13-18	9-16	25	10	30
M32x1.5	32-32.3	18.5-25	13-20	30	12	40
M40x1.5	40-40.3	23-32	20-26	35	14	50
M50x1.5	50-50.3	32.7-38	25-31	38	14	57
M63x1.5	63-63.3	37-44	29-35	40	16.6	64/68
