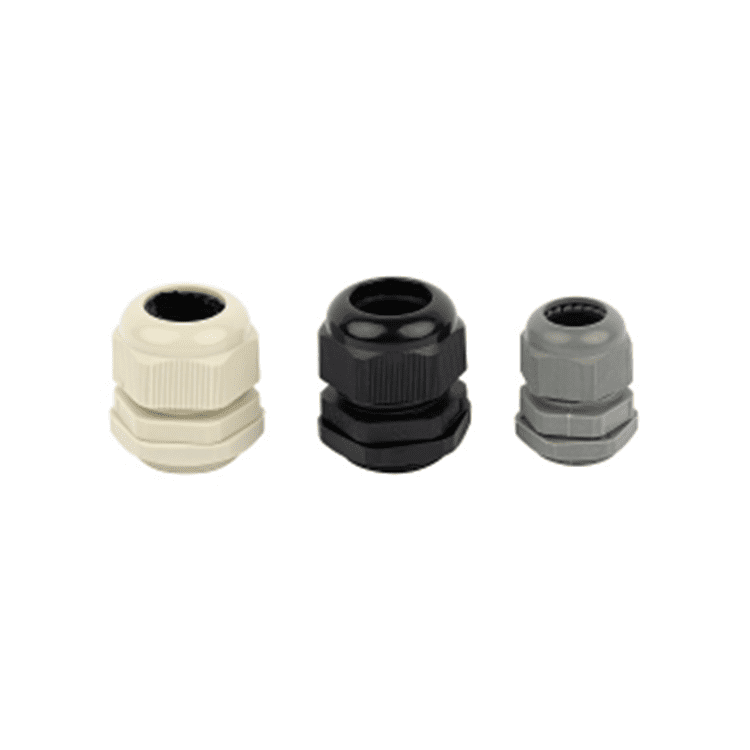

Nylon Cable Glands

Nylon Cable glands are used to link electrical cables to equipment， provide a long-lasting and secure connection.
Nylon Cable glands use for instrumentation, data cables, power and telecommunications.
They are more suitable for evaluating highly strain-relieved flexible cables.
The type of cable gland suitable for your needs can be found in our detail drawings.

Product information
Product parameters

Product information

Thread:Metric,PG
Material:

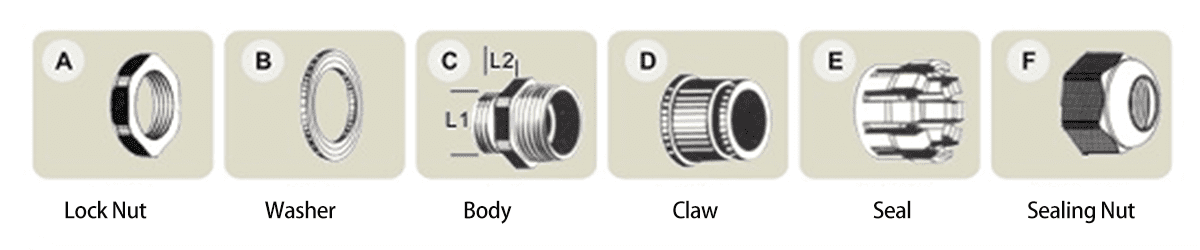

UL approved Nylon PA66(Flammability UL94V-2)for A.C.F parts;(Accpet to make flammability UL V-0);
EPDM rubber for B.D parts(Accpet to make super rubber:resist high temperature rubber ,resist strong acid/alkali,etc)
Protection degree:IP68-10
Working temperature:-40 to 100

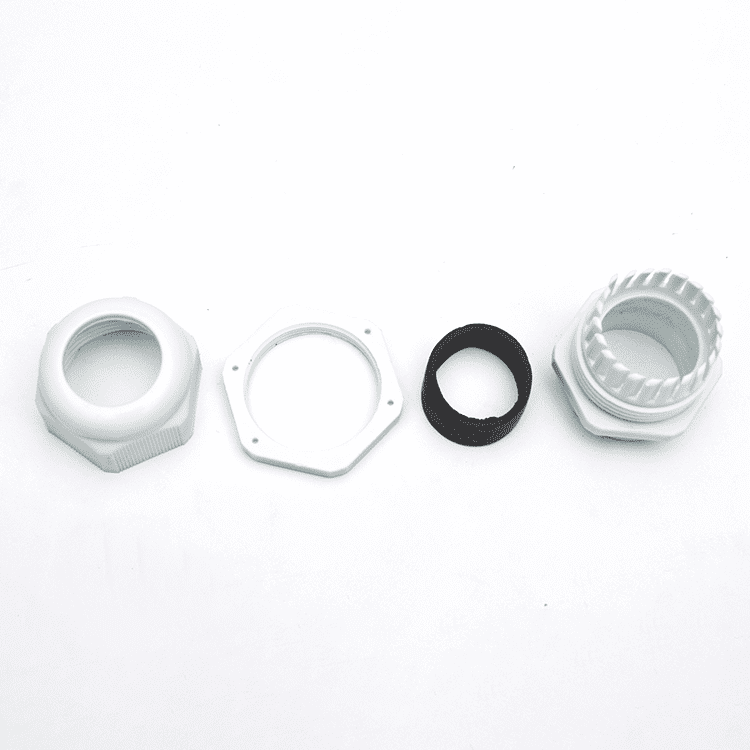

Features:The claws and seals of excellent design,sealing nut have a “click”sound and re-open,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.
Color types: black, gray, other colors can be customized.

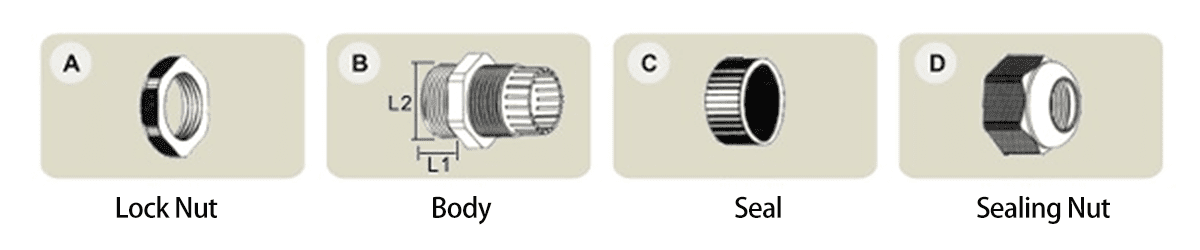

Item No.	Cable Range Ф(mm)		Thread O.D.	Thread Length	Spanner Size	Std.Pkg
Item No.	Conventional	Thickening	L2(mm)	L1(mm)	A&F(mm)	(pcs)
PG7	3-6.5	2-5	12.5	9	18/16	100/6000
PG9	4-8	2-6	15.2	9	22/19	100/4000
PG11	5-10	3-7	18.6	9	24/22	100/2500
PG13.5	6-11	5-9	20.4	10	27/24	100/2000
PG16	10-13	7-12	22.5	10	30/27	100/1700
PG19	12-15	10-12	24	10	30/28	100/1600
PG21	13-18	9-16	28.3	12	35/33	100/1000
PG25	16-21	13-18	30	12	37/35	100/800
PG29	18-25	13-20	37	12	45/42	50/500
PG36	22-32	20-26	47	15	57/52	20/360
PG42	32-38	25-31	54	18	62/58	20/220
PG48	37-44	29-35	59.3	18	70/64	20/240
PG63	42-50	32-40	71	30	83/77	10/100

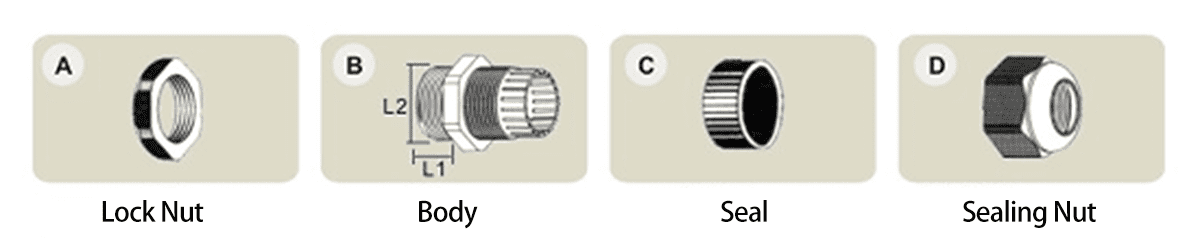

Item No.	Cable Range Ф(mm)		Thread O.D.	Thread Length	Spanner Size
Item No.	Conventional	Thickening	L2(mm)	L1(mm)	A&F(mm)
PG7-L	3-6.5	2-5	12.5	15	18/16
PG9-L	4-8	2-6	15.2	15	22/19
PG11-L	5-10	3-7	18.6	15	24/22
PG13.5-L	6-11	5-9	20.4	15	27/24
PG16-L	10-13	7-12	22.5	15	30/27
PG19-L	12-15	10-12	24.0	15	30/28
PG21-L	13-18	9-16	28.3	15	35/33
PG25-L	16-21	13-18	30	15	37/35
PG29-L	18-25	13-20	37	15	45/42
PG36-L	22-32	20-26	47	15	58/52
PG42-L	32-38	25-31	54	18	62/58
PG48-L	37-44	29-35	60	20	70/64

Item No.	Cable Range Ф(mm)		Thread O.D.	Thread Length	Spanner Size	Std.Pkg
Item No.	Conventional	Thickening	L2(mm)	L1(mm)	A&F(mm)	(pcs)
M12x1.5	3-6.5	2-5	12	9	18/16	100/6000
M16x1.5	4-8	2-6	16	9	22/19	100/4000
M18x1.5	5-10	3-7	18	9	24/22	100/2500
M20x1.5	6-11	5-9	20	10	27/24	100/2000
M22x1.5	10-13	7-12	22	10	30/27	100/1700
M24x1.5	12-15	10-12	24	10	30/28	100/1600
M25x1.5	12-15	10-12	25	11	31/28	100/1000
M27x1.5	13-18	9-16	27	12	35/33	100/1000
M30x1.5	16-21	13-18	30	12	37/35	100/800
M32x1.5	16-21	13-18	32	12	38/35	100/800
M36x1.5	18-25	13-20	36	12	45/42	50/500
M40x1.5	22-32	20-26	40	15	52/50	20/360
M50x1.5	32-38	25-31	50	18	62/58	20/220
M63x1.5	37-44	29-35	63	18	72/64	20/240
M71x1.5	42-50	32-40	71	29	83/77
M80x2	55-62		80	21	90
M88x2	56-66		88	21	100
M90x2	66-77		90	21	100
