Edge Clip Cable Ties

Fast fixing without drilling
1.Mdae of Polyamide 6.6, heat stabilised.
2.Easily hand fastened to the edges of any size panel you need.
3.Meeting the needs of the automotive industry for flexible wire fixing
4.For detailed specifications and dimensions, please request the catalog or contact BOESE sales team.

Product information
Product parameters

Product information

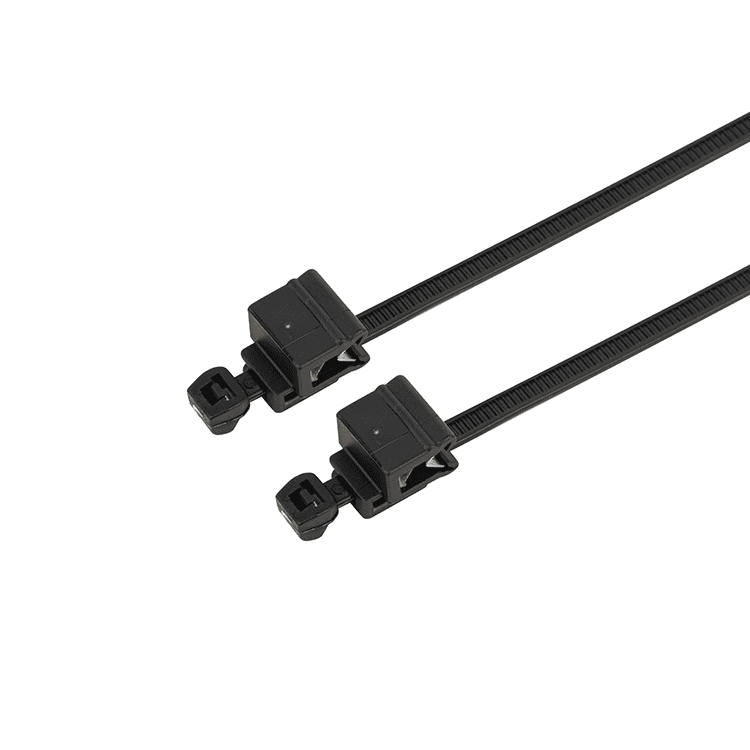

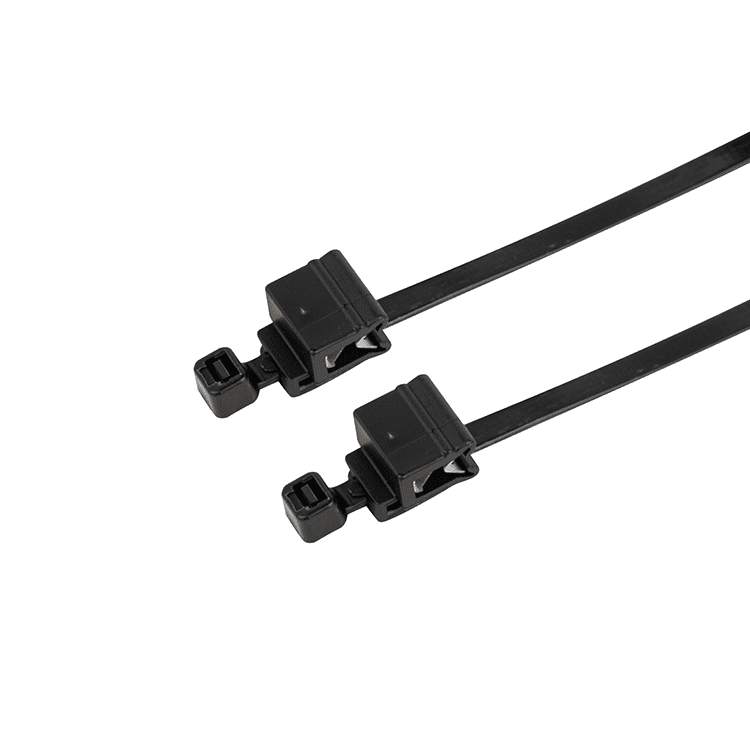

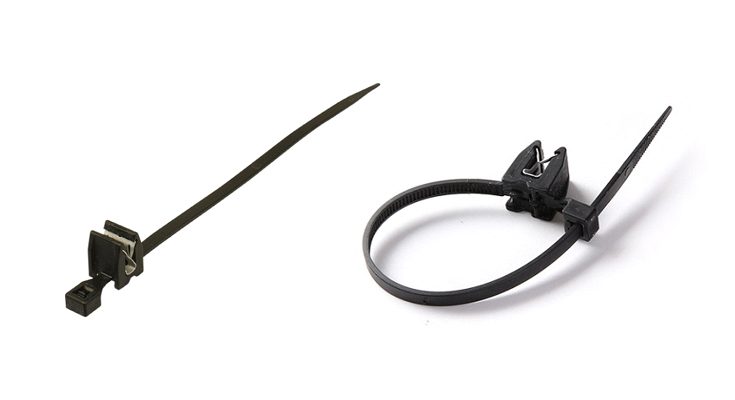

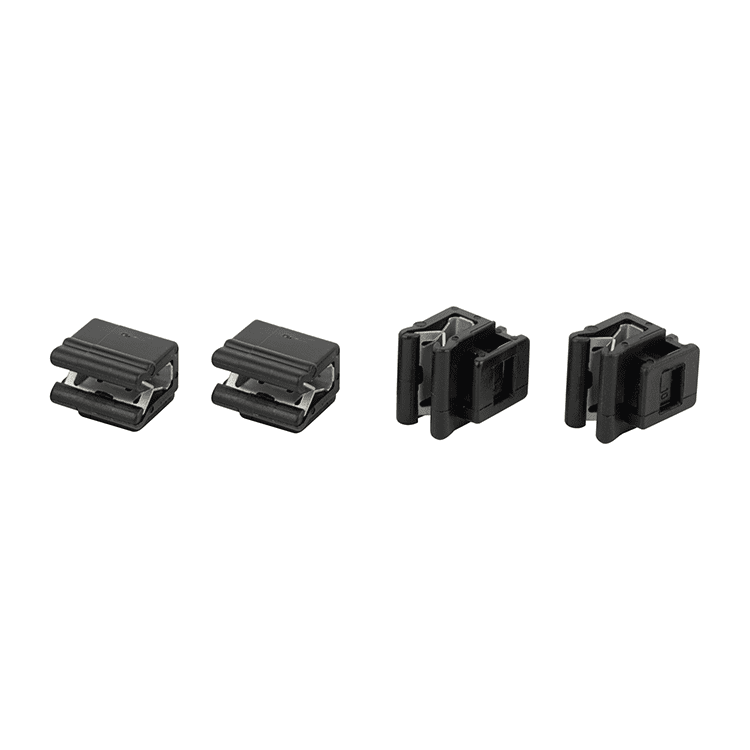

Edge Clip Cable Ties allow fixture to a panel edge without the need to drill. The two-piece design allows the clip to be positioned anywhere along the length of the tie. Available in 8″”, 11″”, and 14″” Lengths.

Integrated clip fits panels 1-3 mm (0.04″”-0.12″”) thick.
Constructed from heat stabilized Nylon 6/6.
50 lb tensile strength.
Meets UL94V-2 flammability classification.
Operating Temperature: -40°C to 85°C (40°F to 185°F).
Max short term temperature: 110°C (230°F).

Product parameters

Item No.	Width	Length	Min.Tensile Strength
Item No.	mm	mm	ibs	kgs
BS-700HST	12	700	219	100

Item No.	Material	Color	For Panel Thickness(mm)	Bundle Diameter (mm)	Original Code
156-00297 156-01438 156-00461 150-76099 156-00860	PA66/65Mn	Black	1-3	4-45	T50ROSEC4A
156-00642 150-76093 156-00858 156-01440	PA66/65Mn	Black	1-3	4-35	T50SOSEC4A
156-00546 156-01182 156-00462 156-00861 150-76079	PA66/65Mn	Black	1-3	4-45	T50ROSEC4B
156-00643 156-01441 150-76083 156-00859 156-00109	PA66/65Mn	Black	1-3	4-35	T50SOSEC4B
156-00615 156-00539 150-76091 156-01114	PA66/65Mn	Black	1-3	4-45	T50REC4A
156-00547 150-76090 156-00813 156-00811	PA66/65Mn	Black	1-3	4-35	T30REC4A
156-00616 156-00538 156-00940	PA66/65Mn	Black	1-3	4-45	T50REC4B
156-00548 150-76080 156-00856 156-00893	PA66/65Mn	Black	1-3	4-35	T30REC4B
156-00669 156-00011	PA66/65Mn	Black	1-3	1-45	T50ROSEC22
156-00875	PA66/65Mn	Black	1-3	1-35	T50SOSEC22
156-01254 T18REC22 156-00971 156-00180	PA66/65Mn	Black	1-3	MAX20	T18REC22SET
156-00576 156-01010	PA66/65Mn	Black	1-3	1-45	T50REC22
156-00915	PA66/65Mn	Black	1-3	1-35	T30REC22
156-00579 156-01255 156-00963 156-00244	PA66/65Mn	Black	1-3	1-20	T18REC9SD T18REC9SDSET
156-00573	PA66/65Mn	Black	1-3	1-35	T30REC9SD
156-00385 156-01280 156-00913 156-00551	PA66/65Mn	Black	1-3	1-45	T50REC9 T50REC9SD
156-00583 156-00867 156-05903	PA66/65Mn	Black	1-3	1-45	T50ROSEC9SD
156-01140 156-00019 156-00866	PA66/65Mn	Black	1-3	1-35	T50SOSEC9SD
156-00621 156-00871 156-05904 156-01305	PA66/65Mn	Black	1-3	1.5-45	T50ROSEC10 T50ROSEC10SD
156-00771 156-00870 156-00015	PA66/65Mn	Black	1-3	1.5-35	T50SOSEC10
156-00595 156-01253 156-00962 156-00241	PA66/65Mn	Black	1-3	5-22	T18REC10SD T18REC10SDSET
156-00598 156-00869	PA66/65Mn	Black	1-3	1.5-35	T30REC10
156-00552 156-00383 156-01039	PA66/65Mn	Black	1-3	1.5-45	T50REC10
156-00529	PA66/65Mn	Black	1-3	4-35	T30REC5B
156-00896 156-00540	PA66/65Mn	Black	1-3	4-45	T50REC5B
156-00684 156-00863 156-00789 156-01435	PA66/65Mn	Black	1-3	4-35	T50SOSEC5B
156-00623 156-00862 156-00464 156-01433	PA66/65Mn	Black	1-3	4-45	T50ROSEC5B
156-00495	PA66/65Mn	Black	1-3	4-35	T30REC5A
156-00617 156-00541 156-01037 156-01437	PA66/65Mn	Black	1-3	4-45	T50REC5A
156-00622 150-40591	PA66/65Mn	Black	1-3	4-45	T50ROSEC5A
156-00644 156-00865 156-00788 156-01434 150-40593 T50SOSEC5A	PA66/65Mn	Black	1-3	4-35	T50SOSEC5A
156-00575 156-00010	PA66/65Mn	Black	1-3	1-45	T50ROSEC21
156-00628 156-00017	PA66/65Mn	Black	1-3	1-35	T50SOSEC21
156-01095 156-00553 156-00387	PA66/65Mn	Black	1-3	1-45	T50REC21
156-01258 156-01288 156-00179 156-00991	PA66/65Mn	Black	1-3	1-18	T18REC21 T18REC21SET
156-00568	PA66/65Mn	Black	1-3	1-35	T30REC21
156-00674 156-00834 156-00873 156-00020	PA66/65Mn	Black	3-6	1-45	T50ROSEC20
156-00830 156-00016	PA66/65Mn	Black	3-6	1-35	T50SOSEC20
156-00898 156-00384 156-00555	PA66/65Mn	Black	3-6	1-45	T50REC20
156-00527 156-00799	PA66/65Mn	Black	3-6	1-35	T30REC20
156-00673 156-00872 156-01038 156-04602	PA66/65Mn	Black	3-6	1.5-45	T50ROSEC19
156-01355 156-01309 156-04601	PA66/65Mn	Black	3-6	1.5-35	T50SOSEC19
156-00897 156-00907 156-00537	PA66/65Mn	Black	3-6	1.5-45	T50REC19
156-00947 156-02979	PA66/65Mn	Black	3-6	1.5-35	T30REC19
156-00646 156-00774 156-00396 156-00877 156-00006	PA66/65Mn	Black	3-6	1-45	T50ROSEC23
156-00908 156-00556 156-02459	PA66/65Mn	Black	3-6	1-45	T50REC23
156-01026	PA66/65Mn	Black	3-6	1-35	T30REC23
156-00672 156-01117 156-00775 156-00398 156-00878 156-00007	PA66/65Mn	Black	3-6	1-45	T50ROSEC24
156-00909	PA66/65Mn	Black	3-6	1-45	T50REC24
