Product information
Material: Nylon66(UL)
Operatiing Temp:-40C to 120C
Flammability Rating: UL 94V-2
Color:Natural/Black

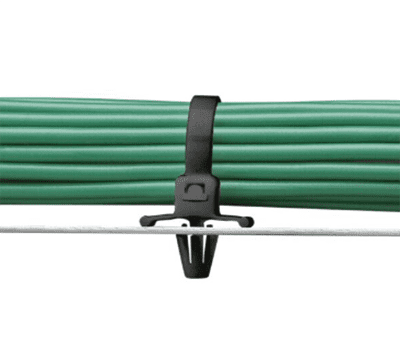

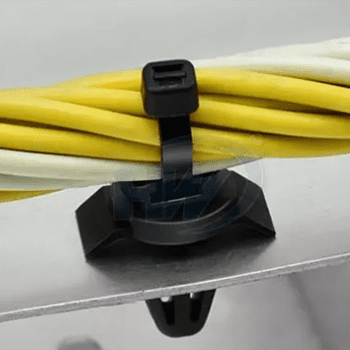

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Product parameters

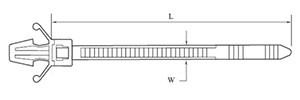

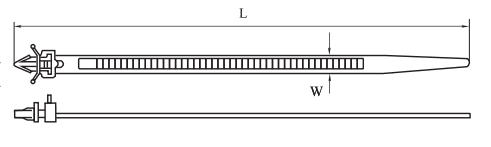

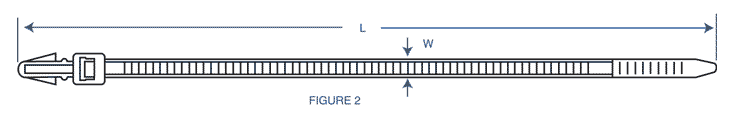

| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| BS-7.2x150PT | 7.2 | 150 | 6″ | 35 | 6.2-9.2 | 0.3-2.2 | 62 | 28 |
| BS-8.0x220PT | 8 | 220 | 6″ | 50 | 7.3-9.5 | 0.3-2.8 | 62 | 28 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| BS-2.5x100PT | 2.5 | 100 | 4″ | 15 | 4.2-5.1 | 0.2-2 | 18 | 8 |
| BS-3.6x150PT | 3.6 | 150 | 6″ | 22 | 4.5-6 | 0.3-3 | 40 | 18 |
| BS-3.6x200PT | 3.6 | 200 | 8″ | 35 | 4.5-6 | 0.3-3 | 40 | 18 |
| BS-4.8x120PT | 4.8 | 120 | 4.8″ | 15 | 5.8-6.8 | 0.3-3 | 50 | 22 |
| BS-4.8x150PT | 4.8 | 150 | 6″ | 22 | 5.8-6.8 | 0.3-3 | 50 | 22 |
| BS-4.8x200PT | 4.8 | 200 | 8″ | 35 | 5.8-7 | 0.3-3 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| BS-3.6x150PTF | 3.6 | 150 | 6″ | 30 | 4.4-5.3 | 0.3-2.5 | 40 | 18 |
| BS-4.8x200PTF | 4.8 | 200 | 8″ | 35 | 6-7.3 | 0.3-2.5 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| BS-6x170PTS | 6 | 170 | 6.7″ | 40 | 5.1-6.5 | 0.3-3 | 55 | 24 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| BS-5×120 | 5 | 120 | 4.7″ | 16 | 6.6-7.3 | 0.3-3 | 50 | 22 |
| BS-5.2×165 | 5.2 | 165 | 6.5″ | 22 | 7.2-8.2 | 0.3-2 | 50 | 22 |
| BS-5.2×165 | 5.2 | 165 | 6.5″ | 22 | 6.3-7.0 | 2.3-3.5 | 55 | 24 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 7.2X150 | 7.2 | 150 | 6″ | 30 | 5.2-9.2 | 0.3-2.2 | 120 | 55 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 4.6×160 | 4.6 | 160 | 6.3″ | 22 | 6.0-7.4 | 2-3 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 4.6×160 | 4.6 | 160 | 6.3″ | 22 | 6.9-7.3 | 0.3-1.9 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 4.6×160 | 4.6 | 160 | 6.3″ | 22 | 5.4-6.4 | 0.3-1.8 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 4.6×160 | 4.6 | 160 | 6.3″ | 22 | 6.5-8 | 2-3 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 5.2×165 | 5.2 | 165 | 6.5″ | 22 | 6.8-9.4 | 0.3-2.2 | 50 | 22 |
| Item No. | Width | Length | Max.Bundle Dia. | Hole Dia.(mm) | Panel thickness(mm) | Min.Tensile Strength | ||
| mm | mm | inch | mm | ibs | kgs | |||
| 6.5×165 | 6.5 | 165 | 6.5″ | 22 | 7.3-8.5 | 2-4 | 100 | 45 |
