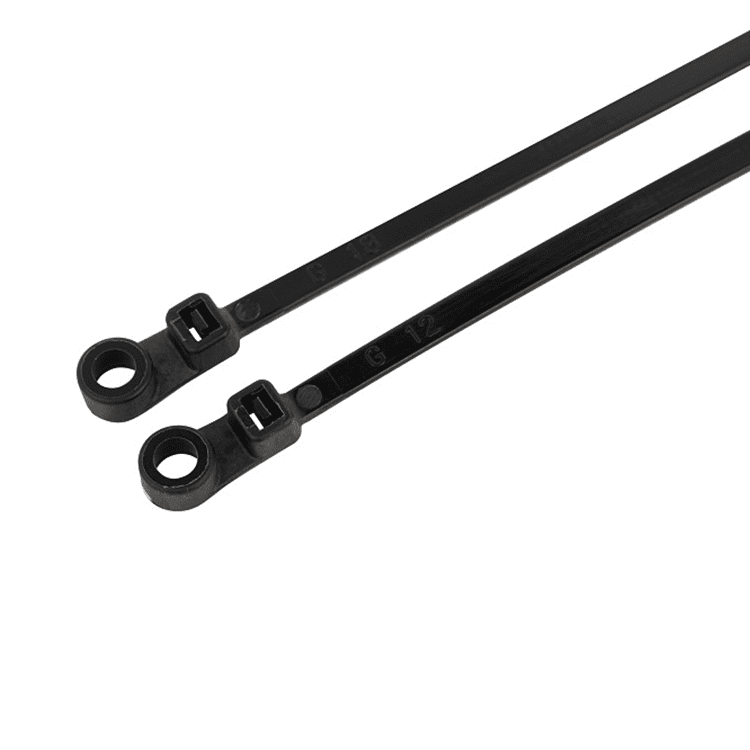

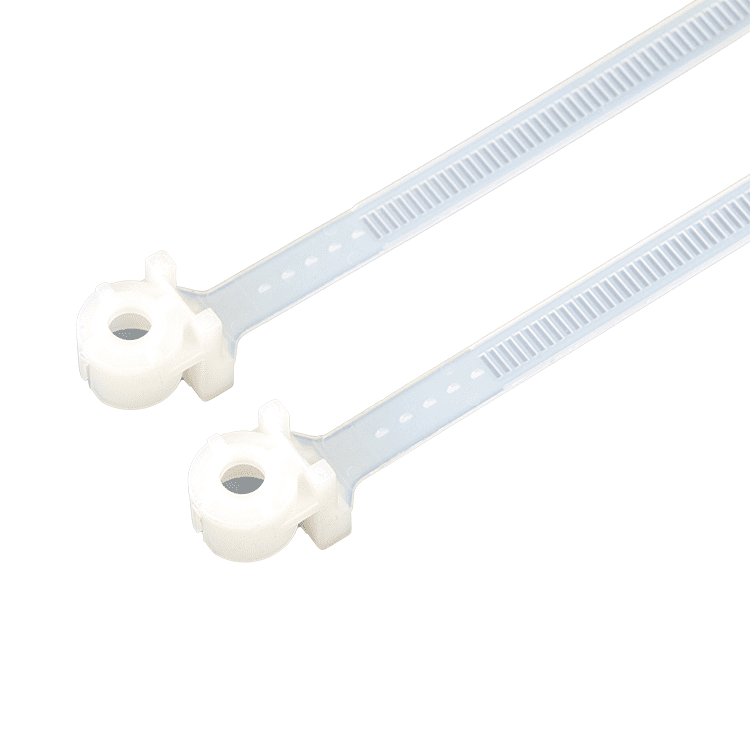

Mountable Head Cable Ties

Material: Nylon66(UL)
Color: All colors are available

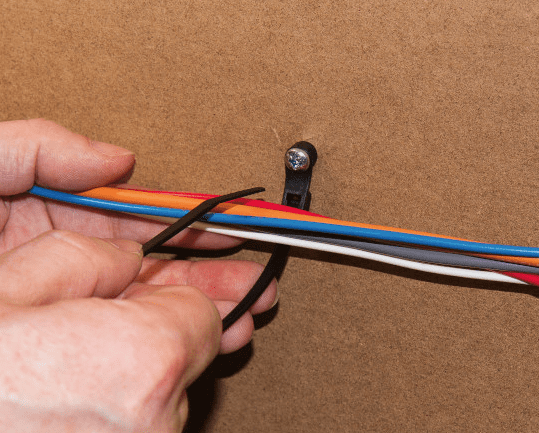

Description: After bundling wires,fix them on plate with screw

Product information

Material: Nylon66(UL)
Color: All colors are available
Description: After bundling wires,fix them on plate with screw

Product parameters

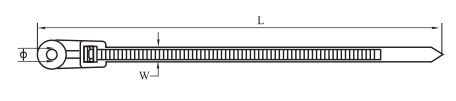

Model Width Length Max.Bundle Dia. Hole Dia.(mm) Min.Tensile Strength
Item No. mm mm inch mm mm ibs kgs
BS-3.6x100MT 3.6 100 4″ 22 4.4 40 18
BS-3.6x150MT 3.6 150 6″ 35 4.4 40 18
BS-3.6x200MT 3.6 200 8″ 50 4.4 40 18
BS-4.8x150MT 4.8 150 6″ 35 5.2 50 22
BS-4.8x200MT 4.8 200 8″ 50 5.2 50 22
BS-4.8x250MT 4.8 250 10″ 65 5.2 50 22
BS-4.8x300MT 4.8 300 11.8″ 80 5.2 50 22
BS-7.6x300MT 7.6 300 11.8″ 80 6.2 120 55
BS-7.6x400MT 7.6 400 15.7″ 110 6.2 120 55



Applicable scene
