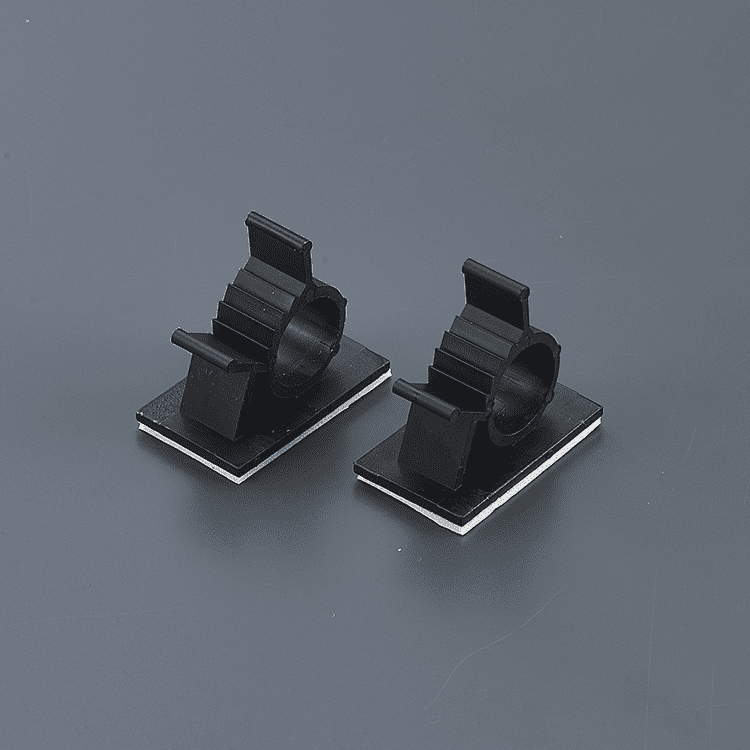

Cable Clamps
Cable Clamps
Cable Clamps

Cable Clamps

The Cable Clamps can be applied to various sizes of cables,assemble easily, rapidly and tightly, to be
used repeatedly.

High strength peel and stick adhesive pad Two stage lock design to accommodate different cable sizes
in one clamp.

Easy to reopen with thumb tab release.

Product information

Material:UL approved Nylon66,94V-2J the back attached sponge glue imported.

Product parameters

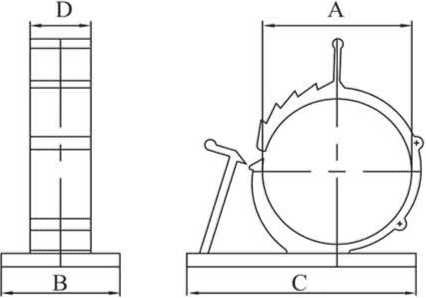

ITEM NO Dimension (mm)
A B C D E F
ADP-0810 7.9 〜10.3 25.4 22.2 19.1 1.6 10.2
ADP-1013 10.0 〜12.5 31.8 27.8 19.1 1.6 10.2
ADP-1316 12.6 〜15.4 37 31.8 18.4 3 12.1
ADP-1720 16.5-20.1 42 37 25 3 12.7
ADP-2225 22.2-25.4 41.8 43.5 21.5 3 11.3
